Scarlett Blueprints - 3 Guitar SVG Super Pack

Take your guitar-building game to the next level with the Scarlett Guitars SVG Blueprint Pack—a precision-engineered digital template set designed for makers, by a maker. Whether you’re running a CNC or laser cutter, these scalable vector files are 100% to scale and drag-and-drop ready, giving you everything you need to bring professional-quality instruments to life. These are the exact vectors I use to make my templates and my own guitars as seen on The Wooden Hobbyist YouTube channel. Once purchased, a download link will be sent straight to your email.

What’s Included:

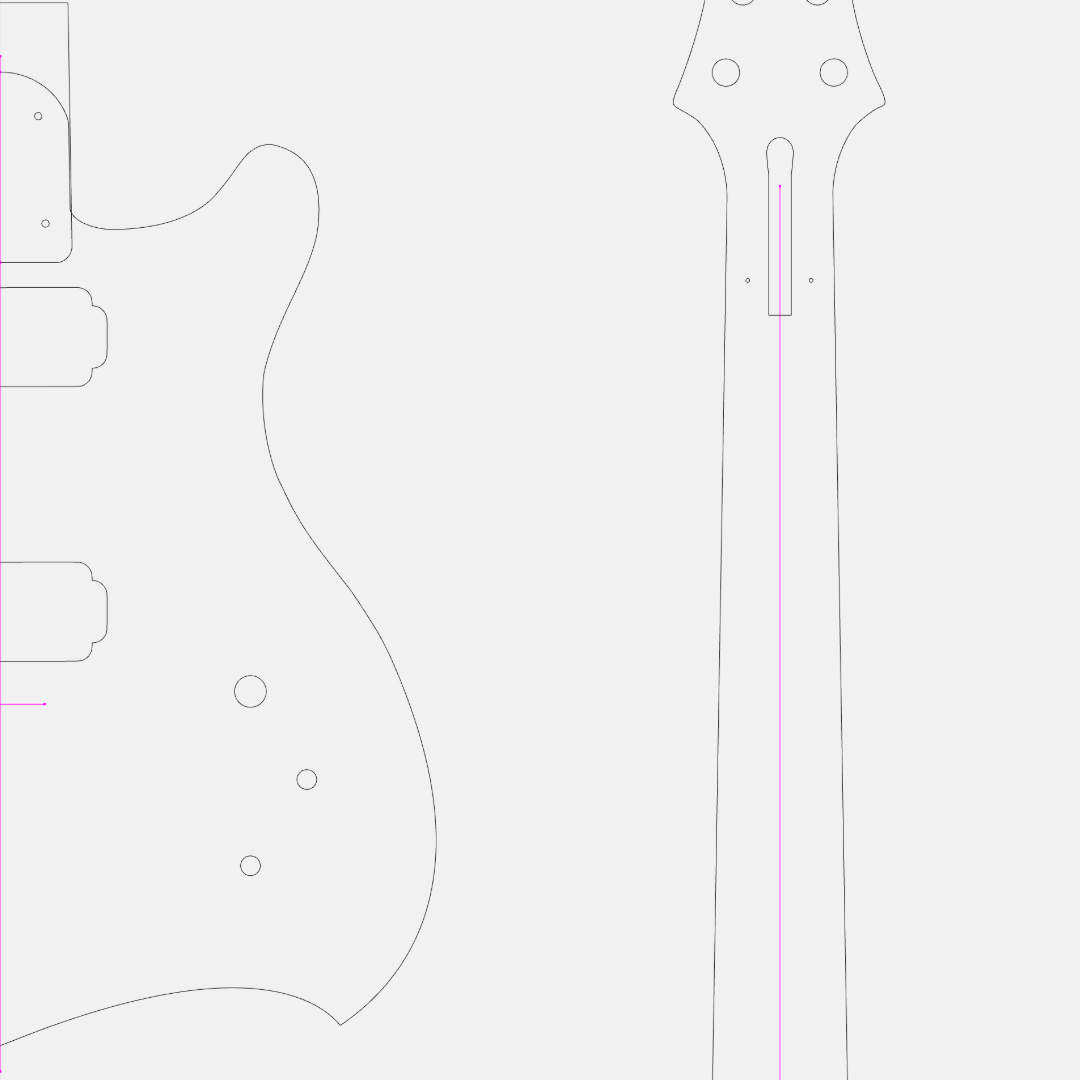

• 3 Unique Body Designs - Scarlett MKi Single Cut, PRScarlett, Single Cut Bass

• 2 Guitar bodies

• 1 Bass guitar body

• 2 Neck Templates

• 1 Guitar neck (25.5” scale, 22 frets)

• 1 Bass neck (34” scale, 24 frets)

Engineered for Flexibility & Precision:

• Fully Layered SVG Files with clear vector paths

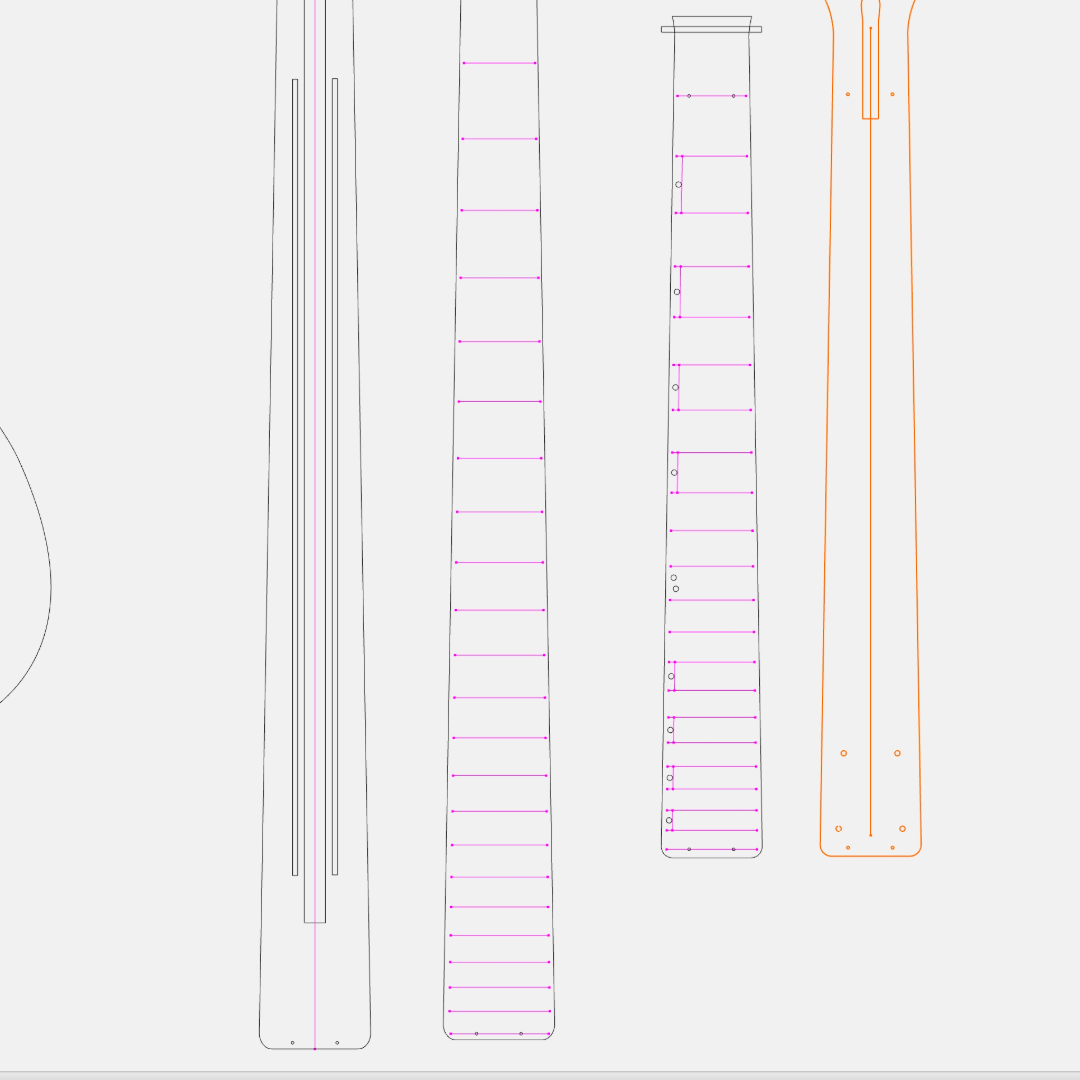

• Fretboard & Fret Slot Vectors for precise placement

• Truss Rod & Carbon Fiber Rod Channels

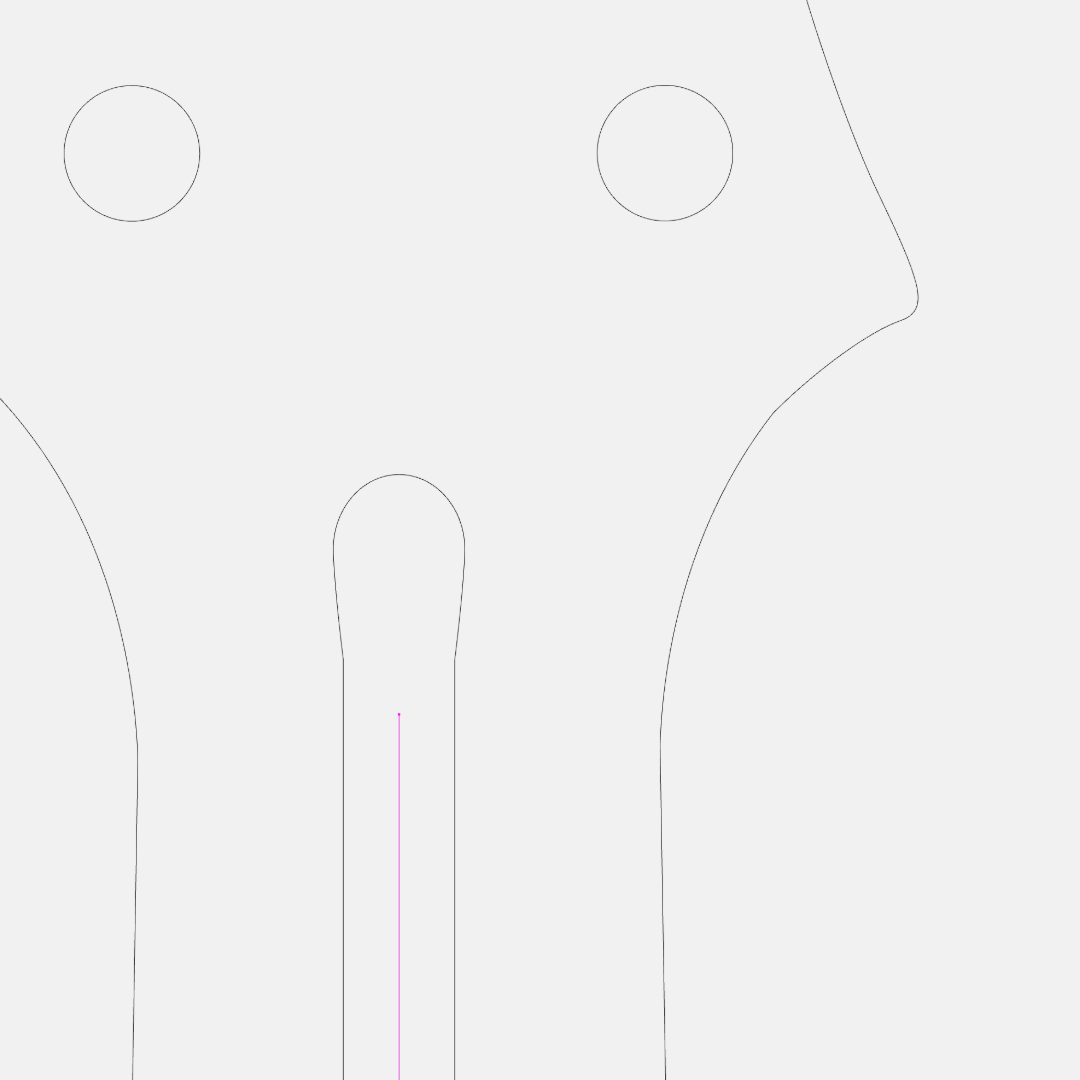

• Tuner Hole Layouts optimized for modern and vintage styles

• Bridge Scale Markers to ensure accurate intonation

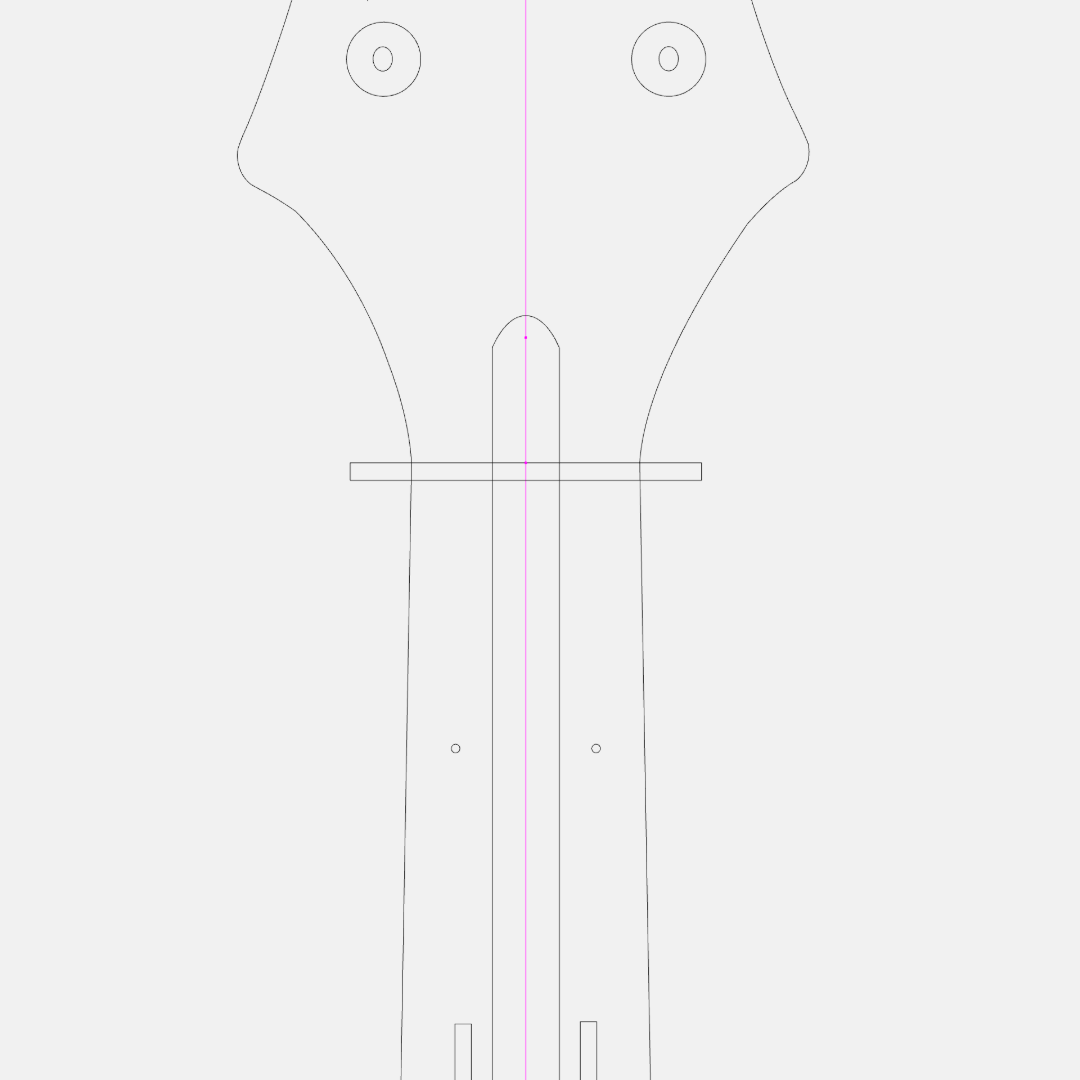

• Nut Slots sized for standard nuts

• Electronics Cavity & Lid Templates for clean rear-routed builds

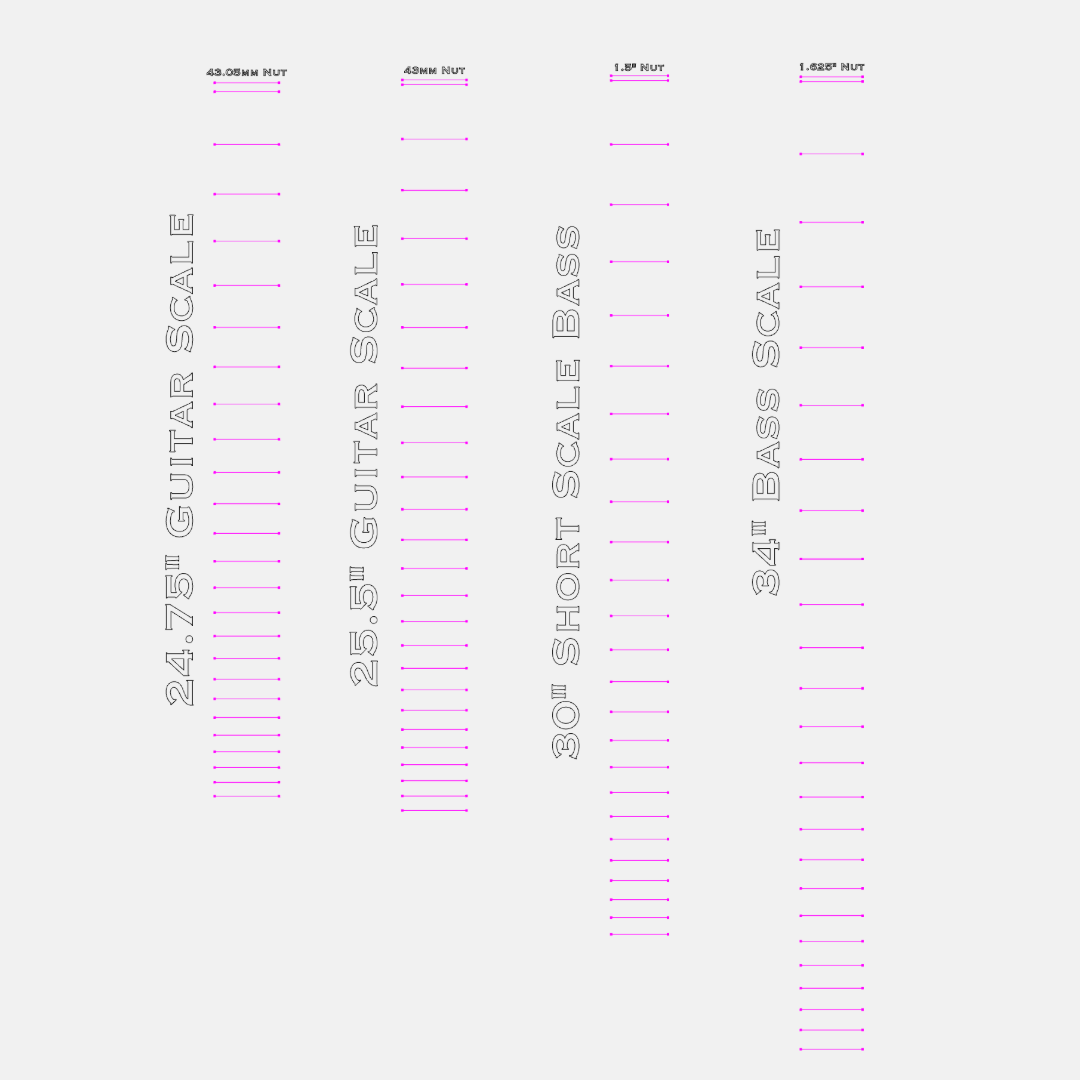

• Bonus: 4 Interchangeable Fret Scale Lengths included for maximum flexibility

Built for CNC Users:

Included is a PDF user guide tailored to CNC workflows, helping you get up and running quickly—even if it’s your first time using SVG files for luthiery.

⸻

Whether you’re a seasoned luthier or just stepping into the world of custom guitar building, this blueprint pack saves you hours of design time and eliminates guesswork—so you can focus on what matters most: creating playable art.

⚙️ Instant Download sent to your email | 💻 CNC Ready | 🎸 Built by a Guitar Builder, for Guitar Builders

**Disclaimer: These designs are owned by The Wooden Hobbyist LLC and are for personal use only. For licensing involving selling these designs or products made with these designs, contact info@thewoodenhobbyist.com.
